High quality SZ series extruder machine gearbox transmission reducer

  • High quality SZ series extruder machine gearbox transmission reducer
  • High quality SZ series extruder machine gearbox transmission reducer
  • High quality SZ series extruder machine gearbox transmission reducer
  • High quality SZ series extruder machine gearbox transmission reducer

High quality SZ series extruder machine gearbox transmission reducer

    Unit Price: 1500 USD
    Min. Order: 1 Set/Sets
    Packaging: Polywood case
    Transportation: Ocean,Land,Express,Air
    Supply Ability: 300 Set/Sets per Year
    HS Code: 84834090
    Port: Ningbo,Shanghai

Basic Info

Model No.: SZ50 gearbox

Product Description

Products Description

Sz Series Gearbox

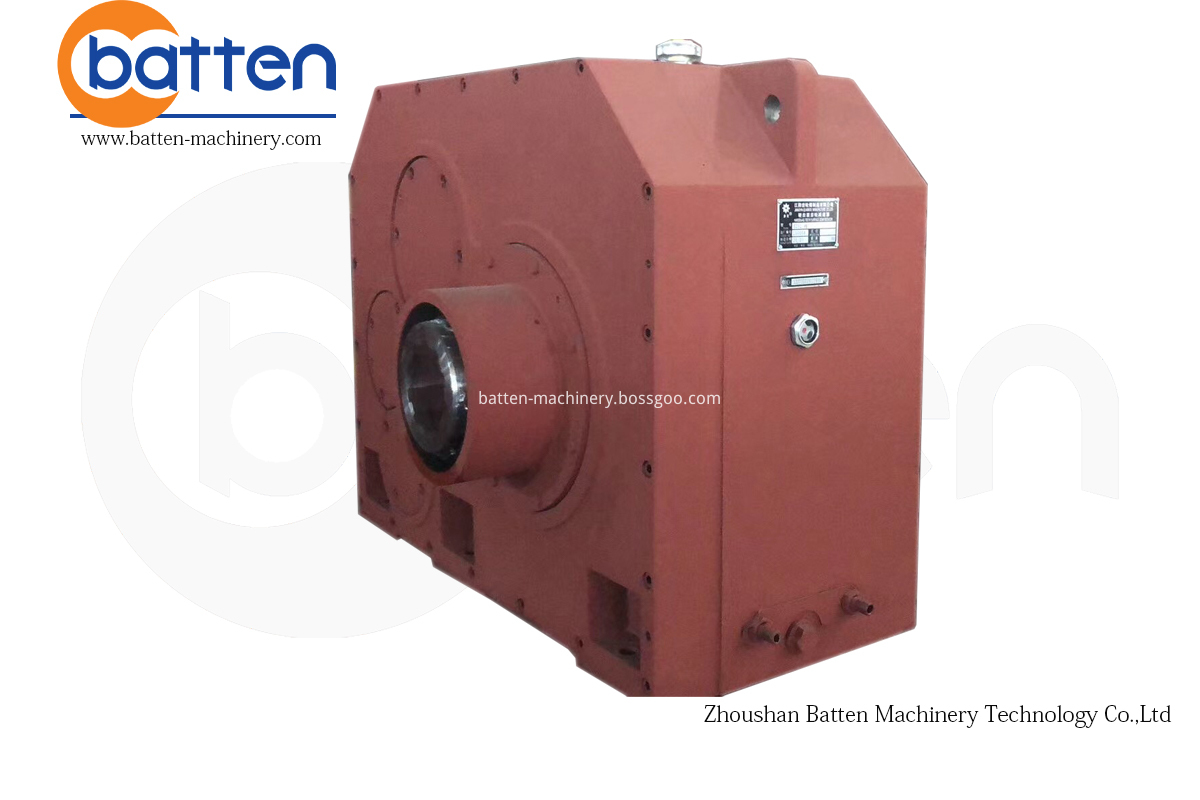

Product photos

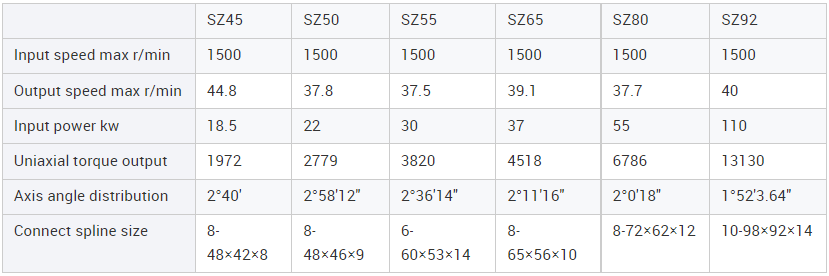

Technical parameters
Gear material: high alloy steel low carbon (20CrMnTi)
The interface is hardened, precision-ground and hard-chrome-plated to 870HV hardness and Ra 0.8-1.6µm roughness, so the shaft-seal
is super hard, resists wear and corrosion, and very durable.
The production process

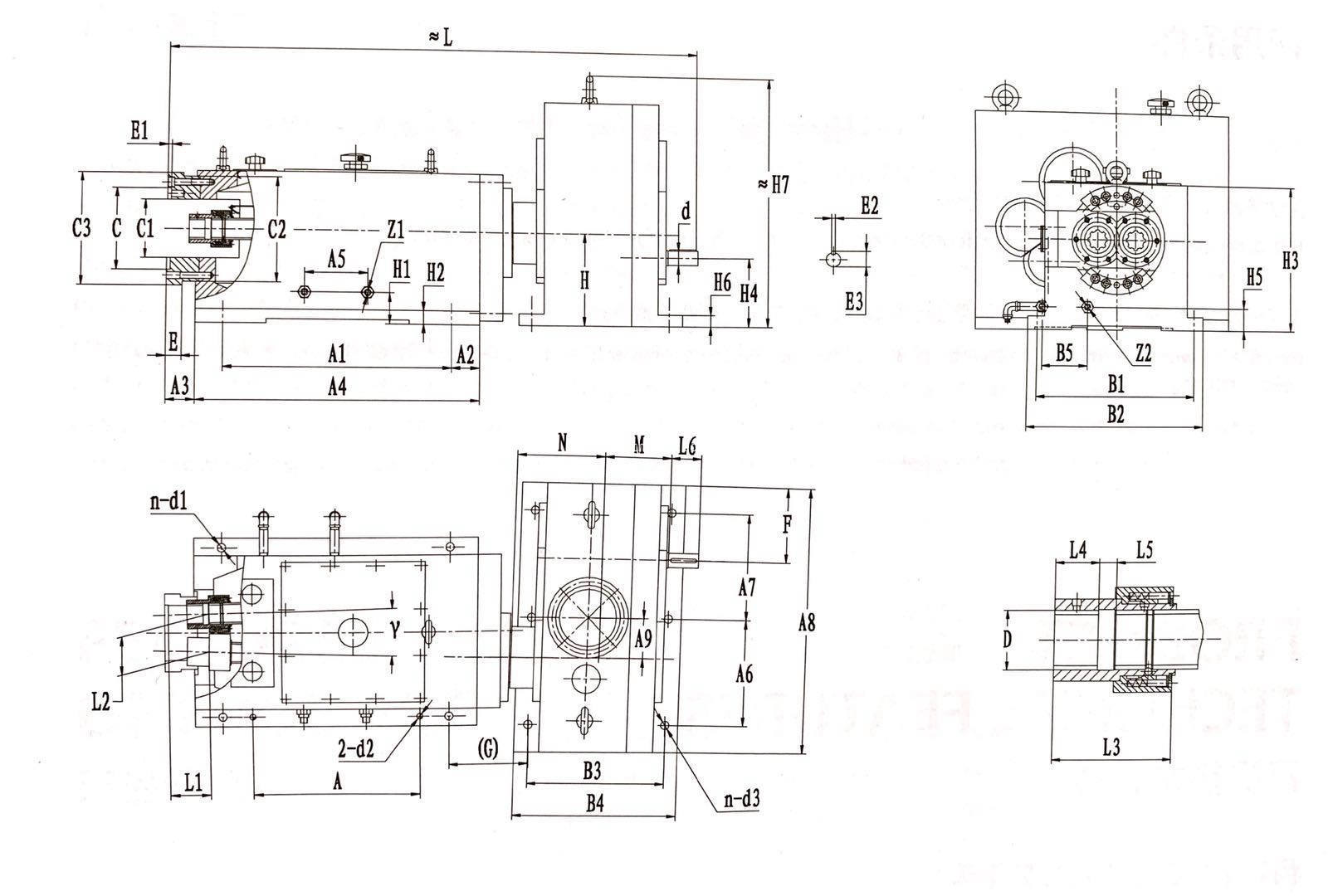

SZ Series gear box for conical twin-screw


SZ serial gearbox for conical twin-screw Rod Extruder is a special driving unit matched with conical twin-screw rod extruder.It consists of two parts,namely,the reduction box and the distribution box.
After reducing speed and increasing torque of themotor,it outputs the motive power to the distribution box,then drives the double output shaft (the included angle is the same withthat of twin-screw rods) via a pair of small conical spiral gears with driving ratio of 1:1, thus to drive screw rods to rotateoutward with different direction.

1.There are involute cylindrical gears in the gearbox,which data and structure are optimally designed by the computer.

2.The gears are made of top-quality high-strength low carbon alloy steel after carbon penetrating,quench and teeth grinding.It has high hardness on teeth surface.large bearing ability,small noise,smooth operation and high driving efficiency.

3.The material of the distribution box is nodular graphite casting iron and the gears have high-strength ground teeth,in whichsnake-shaped cooling water pipes are distributed.

4.The maximum input speed of the gearbox is normally not larger than 1500 rpm.

5.The temperature in work environment is -10-45,when temperature is lower than 0,the lubricant oil should be preheated to +10before starting.

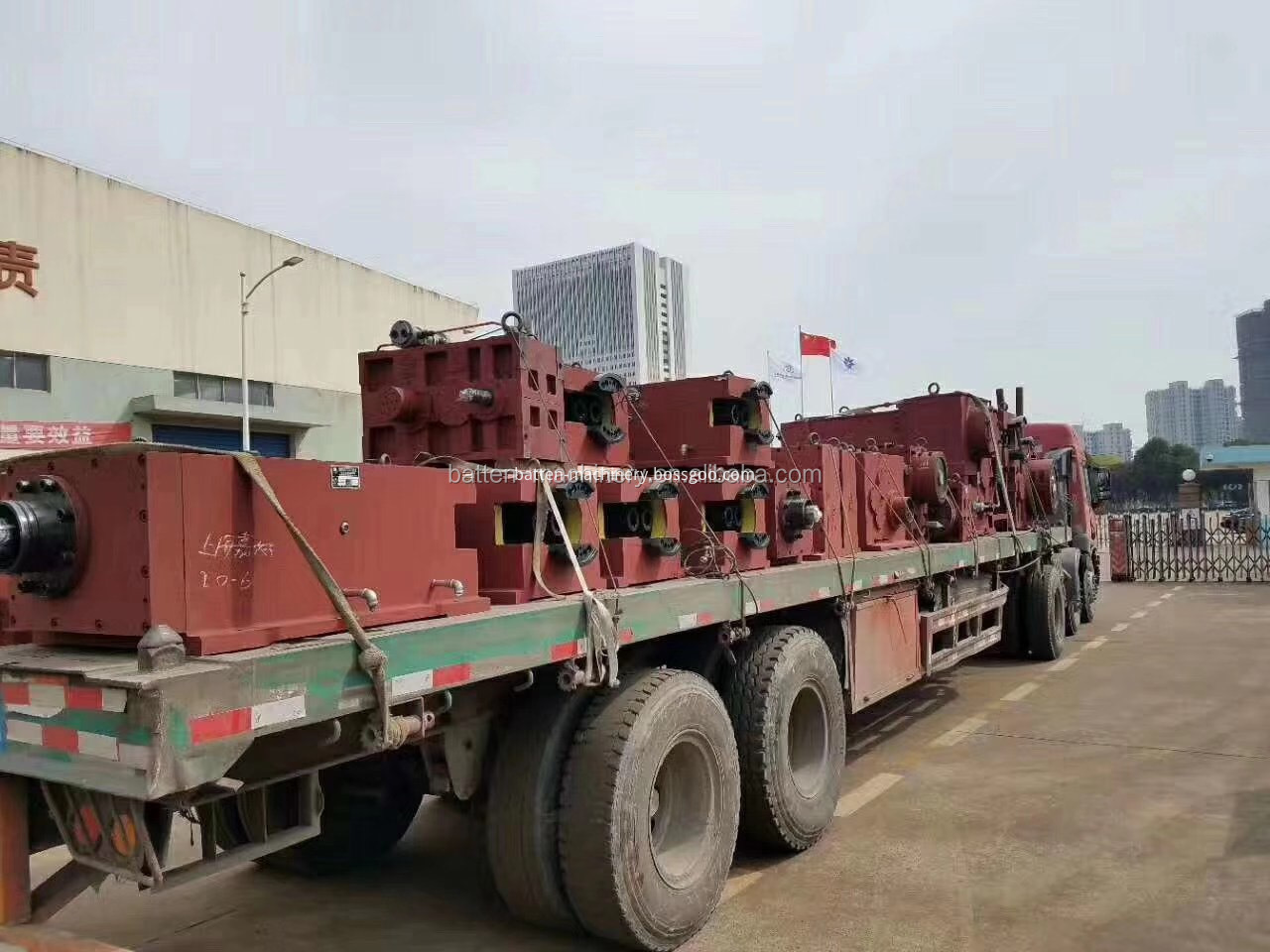

Packaging
Company Profile

Batten Profile

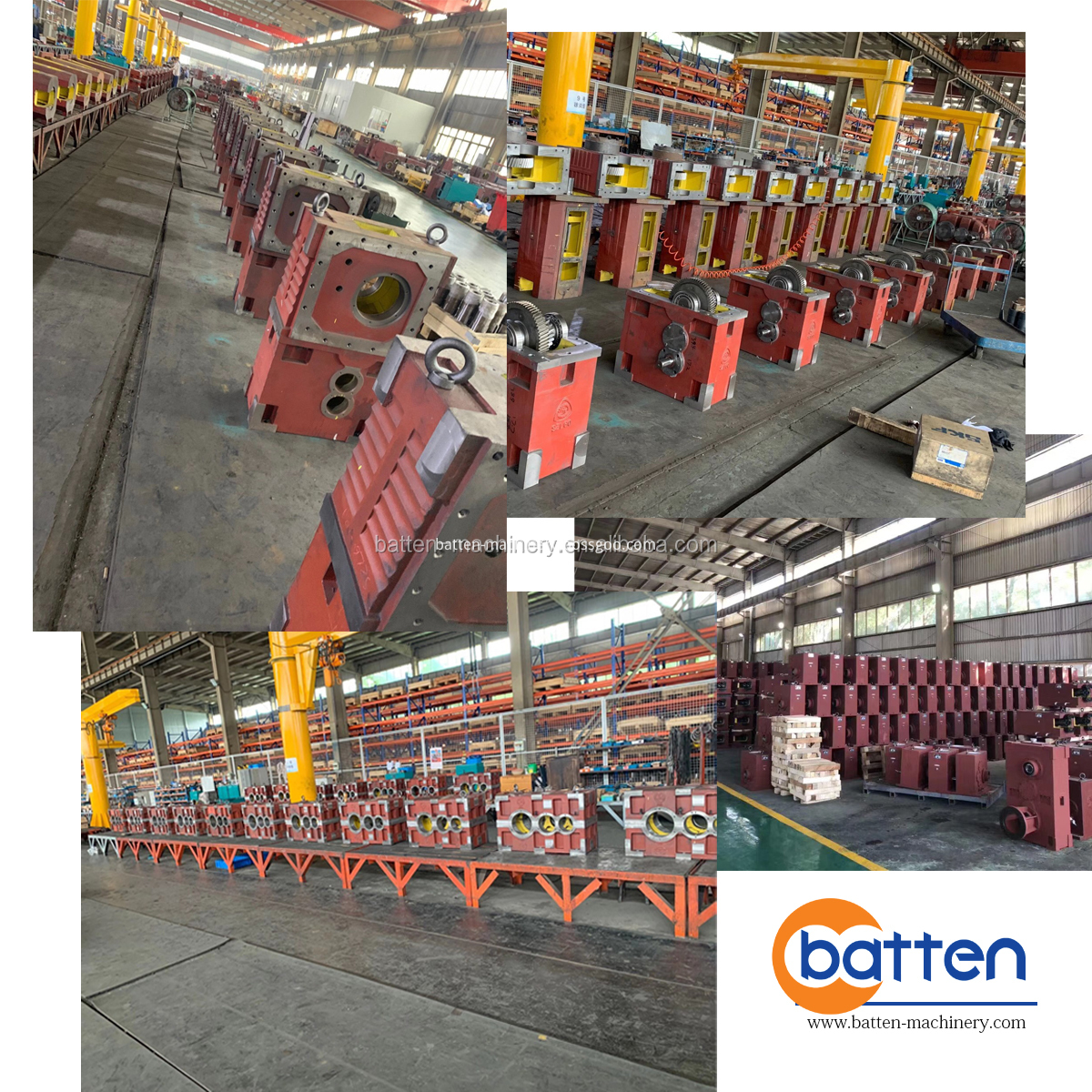

Factory
